DIGITARC Steel Prods for Crossbows


The below listed items are made of special steel which has been precisely hardened and tempered.
These are available in plain steel finish or black treated, not rust free, coated with wax to resist rust.

Steel Prods With  Wheels:

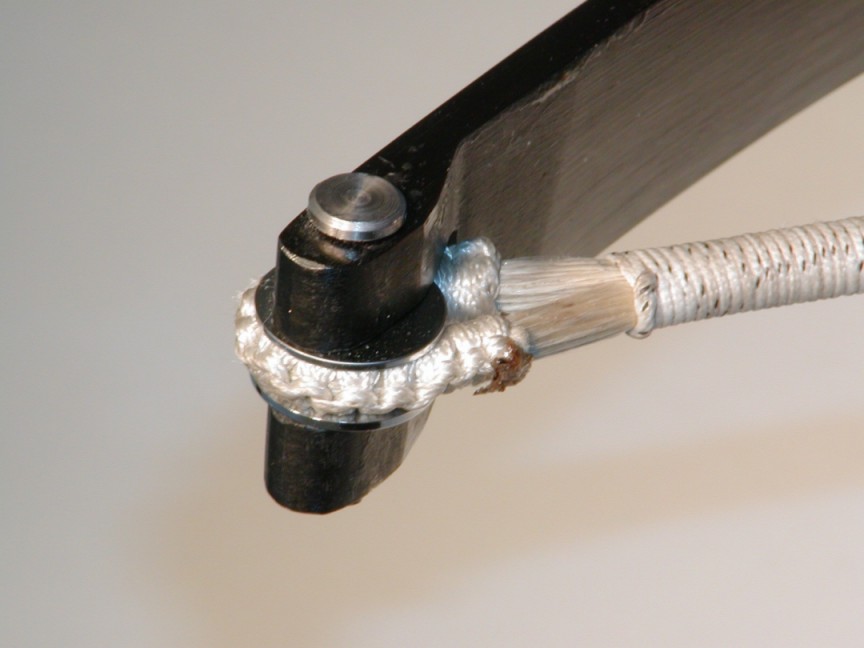

These types are fitted with wheels on the tips for supporting the bowstring as pictured.
Wheels and pivoting pins are included by delivery.
Additional wheels can be ordered separately.
All these models have a flattened center part of 100 mm.




Model:
Draw weight:
Draw distance:

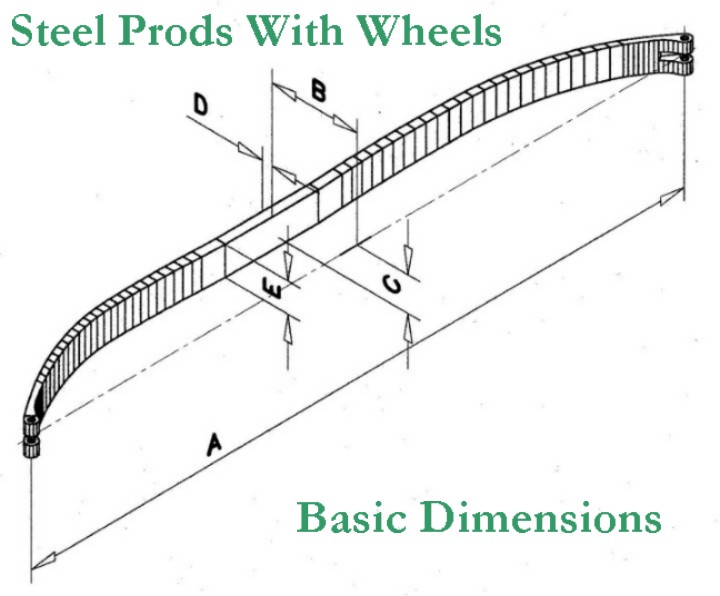

Dimensions:

 Width
E
Thickness
D
Center:
Thickness
D
Tips:
Weight:
Stock
Item
Price
A     C
6M
 60 kg
132 lbs
145 mm
5 3/4"
545 mm
21  1/2"
70 mm
2 3/4"
25 mm
1"
25 mm
1"
8 mm
5/16"
4 mm
5/32"
0,58 kg
1,27 lbs
yes

100.-

10M
 75 kg
165 lbs
160 mm
6"
572 mm
22 1/2"
70 mm
3"
25 mm
1"
25 mm
1"
8 mm
5/16"
5 mm
7/32"
0,68 kg
1,49 lbs
yes 125.-
16M

180 kg
396 lbs

160 mm
6"
572 mm
22 1/2"
70 mm
3"
25 mm
1"
25 mm
1"
10 mm
13/32"
6 mm
1/4"
*
yes 125.-
16X
*
160 mm
6"
630 mm
24 3/4"
70mm
3"
35 mm
1 5/16"
30 mm
1 1/8"
10 mm
13/32"
 4 mm
5/32"
*
* *

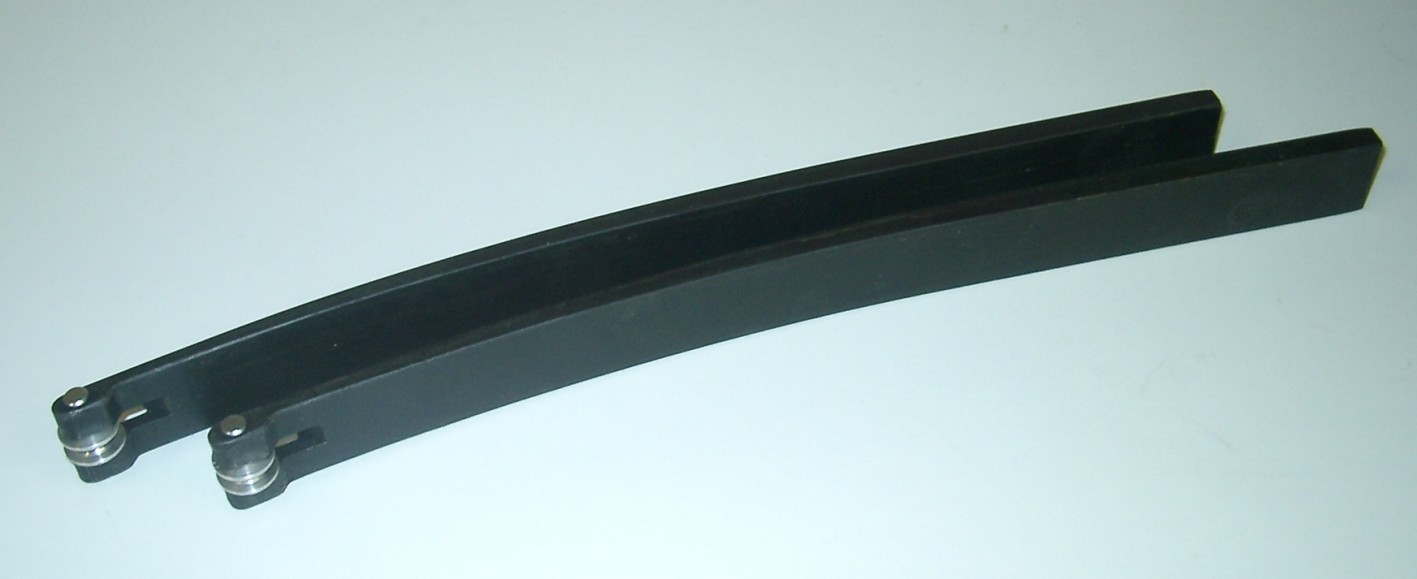

10M
linbs
75 kg
165 lbs
160 mm
6"
310 mm
12 1/4"
22 mm
7/8"
0 25 mm
1"
8 mm
5/16"
5 mm
7/32"
0.82 kg
1.80 lbs
no 150.-
20X
 100  kg
242 lbs
170 mm
6 1/2 "
675 mm
26 1/2"
70 mm
2 3/4"
20 mm
3/4"
27.5mm
1 3/32"
10 mm
13/32"
 4 mm
5/32"
1 kg
2,2 lbs
* *
20XL
 110  kg
242 lbs
170 mm
6 1/2 "
680 mm
26 3/4 "
65 mm
2 1/5 "
25 mm
1
30 mm
1 1/8"
10 mm
13/32"
 5 mm
7/32"
1 kg
2,2 lbs
* 150.-

20L

 110  kg
242 lbs

170 mm
6 1/2"

675 mm
26 1/2"

70 mm
2 3/4"
35 mm
1 5/16"
30 mm
1 1/8"
10 mm
13/32"
5 mm
7/32"
1 kg
2,2 lbs
yes
150.-
20M
120 kg
264 lbs
180 mm
7"
660 mm
26"
90 mm
3 1/2"
35 mm
1 5/16"
30 mm
1 1/8"
10 mm
13/32"
5 mm
7/32"
1 kg
2,2 lbs
yes 150.-
30M
 *
180 mm
7"
690 mm
27 1/8"
100 mm
4"
35 mm
1 5/16"
30 mm
1 1/8"
10 mm
13/32"
 5 mm
7/32"
*
* *
60M
280 kg
616 lbs
180 mm
7"
680 mm
26 3/4"
100 mm
4"
35 mm
1 5/16"
30 mm
1 1/8"
12 mm
1/2"
6 mm
1/4
1,65 kg
3,63 lbs
yes 175.-

Prices are only for indication.
* = not available yet.

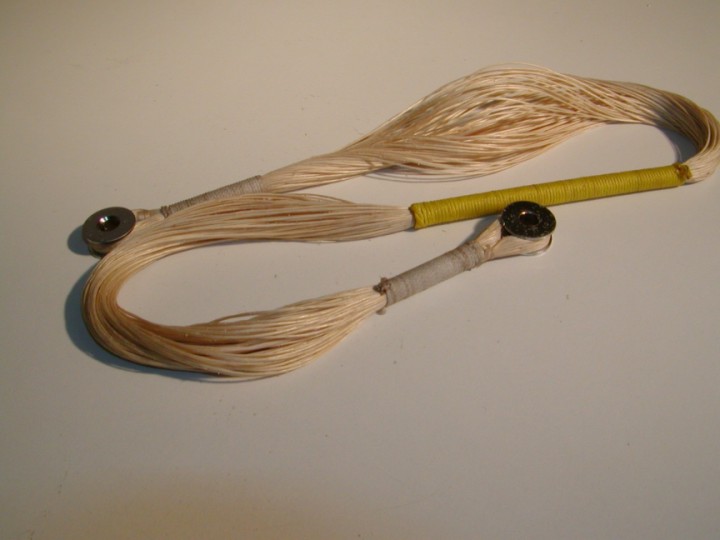

Prepared bowstrings:

To be ordered separately, can be delivered in various materials.



Steel prods with pins:

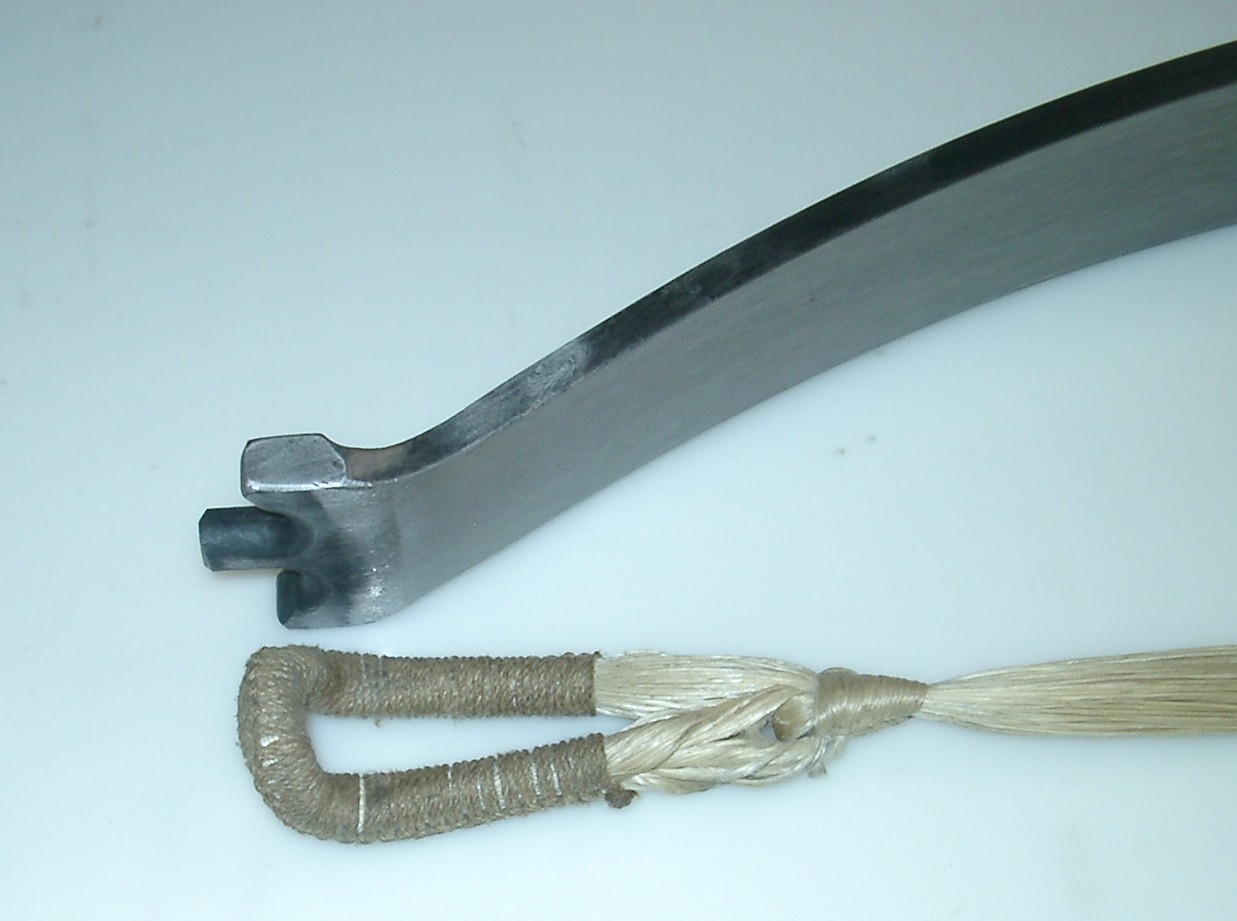

These types are fitted with traditional pins on the tips for supporting the bowstring as pictured.
All these models have a flattened center part of 100 mm.

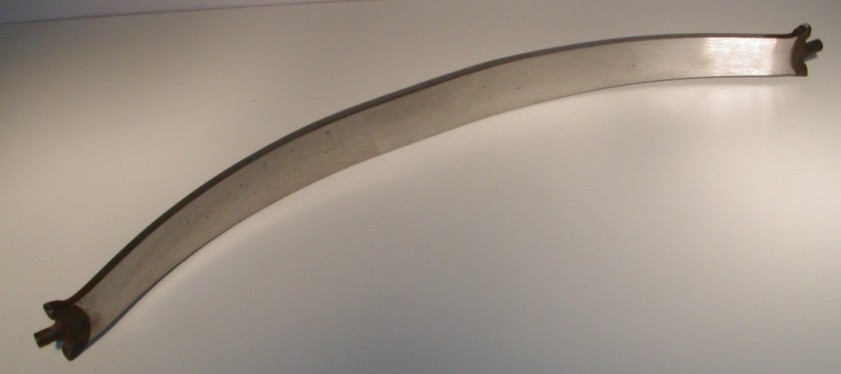

                       Prod end 70 V with 3 part bowstring



Model:
Draw weight:
Draw distance:

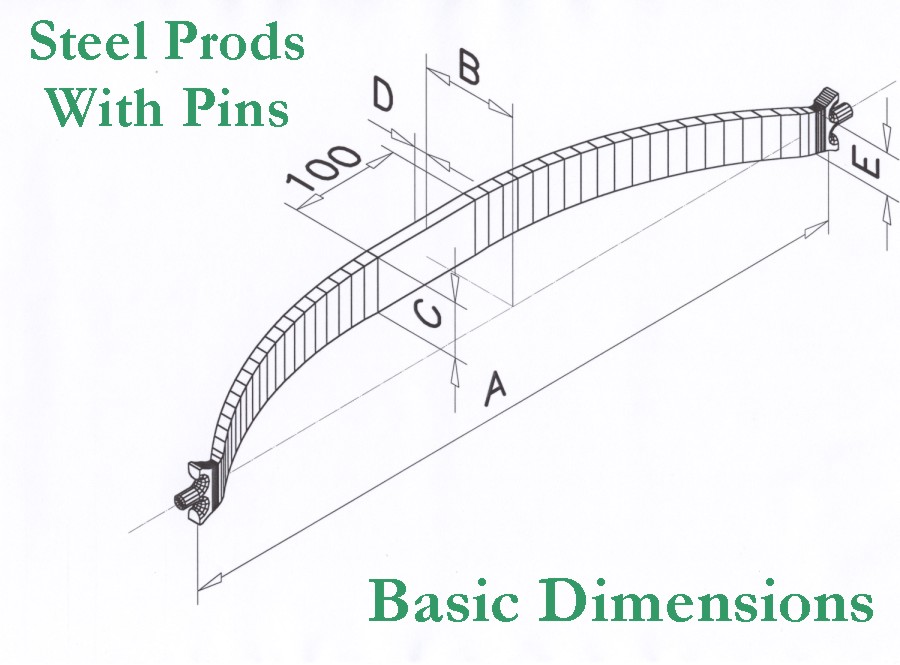

Dimensions:

A                  B                C              E

Thickness
D: Center:
Thickness
D: Tips:
Weight:
Stock
Item
Price

50V

~ 250 kg
~ 500 lbs
180 mm
7"
675 mm
26 9/16"
110 mm
4 3/8"
50 mm
2"
38 mm
1 1/2"
10 mm
13/32 "
7 mm
9/32 "
2,4 kg
5,7lbs
NO
200.-
70V
325 kg
774 lbs
180 mm
7"
675 mm
26 9/16"
110 mm
4 3/8"
50 mm
2"
40 mm
1 19/32"
12 mm
1/2"
9 mm
3/8"
2,8 kg
6,66 lbs
NO
200.-













Please note that the above dimensions and weights will have some variation around these indicated values.

For Ordering send Email to :  info@digitarc.com
